The ultrasonic vibrating screen converts 220v, 50hz or 110v, 60hz electrical energy into 18khz high-frequency electrical energy, which is input into the ultrasonic transducer and transformed into 18khz mechanical vibration, thus achieving the purpose of screening and net cleaning, making the screening of ultra-fine powder an easy task. Based on the traditional vibrating screen, this system introduces a low-amplitude, high-frequency ultrasonic vibrational wave (mechanical wave) onto the screen mesh to improve the screening performance of ultra-fine powder, suitable for users of high-value-added fine powder.
Screening simulation diagram:
Key Features:
Improve the flat descent (light contact between powder and mesh) and sliding effect of low-density powder during gravitational sedimentation, enhance the retention or wedging of high-density metal powder at the mesh, and mitigate the adhesion effect of electrostatic powder, thereby improving screening efficiency and quality. Expressed in terms of screening pass rate, it generally increases the pass rate by 50% to 400% compared to ordinary vibrating screens.
1. Applicable to powders ranging from 20 microns to 300 microns, especially effective for materials that are difficult to sieve.
2. Prevent the blockage of 50~625 mesh openings and the embedding of nearby particles into the mesh openings, thereby extending the service life of valuable screens.
3. The separation of particles due to electrostatic, agglomeration, and adsorption of materials becomes simpler.
4. The application of a unique ultrasonic performance screening system eliminates the need to add any other screen cleaning devices.
5. Capable of clearly separating fine particles with closely adjacent diameters.
6. Without altering the characteristics of the material, it is especially suitable for new materials.
7. Accelerate the separation of agglomerates, thereby increasing the screening capacity and reducing the number of large particles.
The system's matching performance ensures that the operating temperature remains low and allows for continuous operation, making it particularly suitable for materials that require temperature control.
Working Principle:

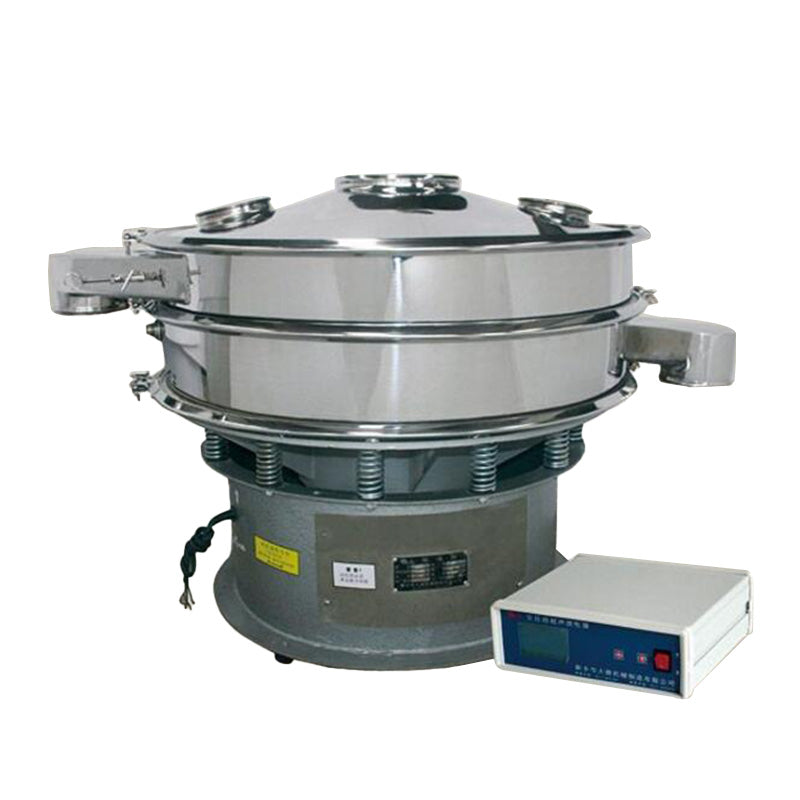

The ultrasonic vibrating screen consists of a rotary vibrating screen and an ultrasonic source. When the vibrating screen operates, the material on the screen not only undergoes low-frequency rotary vibration but also experiences ultrasonic vibration. Ultrasonic vibration prevents blockage of the screen mesh, thereby enhancing both the output and quality of the vibrating screen.
The ultrasonic vibration waves (mechanical waves) attached to the screen mesh subject the ultrafine powder to significant ultrasonic acceleration, thereby inhibiting factors such as adhesion, friction, leveling, and wedging that cause screen blockage, and enhancing screening efficiency and screen cleaning efficiency.
Application example:
500-600 mesh Chinese herbal medicine powder, alloy powder, molybdenum powder, silicon carbide, abrasive, rare earth, stainless steel powder, tungsten powder, nickel powder, cobalt powder, powder coating, quartz powder, butyl methacrylate powder, electromagnetic powder, silicon micro powder, malt powder, coffee powder, anode material, laser powder, aluminum oxide, etc
Technical parameter table:
